Stainless Steel Prefabricated Substation , Box Type Power Distribution Substation

Product Categories

Qingdao Hengfengyou Electrical Engineering Co., Ltd.

Contact Now

Name: Stainless Steel Prefabricated Substation Box Type Power Distribution Substation
Brand: HENGFENGYOU
Price: 2000 USD

Brand Name : HENGFENGYOU

Model Number : ZGS

Certification : ISO IEC CB COC KEMA SNI SABS CCC

Place of Origin : China

MOQ : 1

Price : 2000-200000/piece

Payment Terms : LC T/T

Supply Ability : 5000 pieces/year

Delivery Time : 30 days

Packaging Details : wooden case

Three Phase : S

Combined transformer : Z

Protection class : IP33

Rated capacity : KVA

Weight : 1000kg

Color : Green

Material : stainless steel

Contact Now

ZGS series American prefabricated substation box type Distribution station

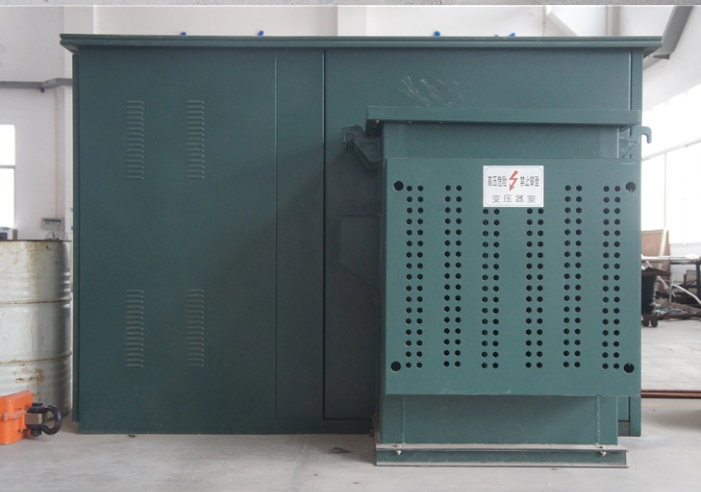

Product View

ZGS series combined transformers also called American transformers and are series of products as required

by the construction development and transformation of rural and urban grid.It is a kind of transformer combined

by auxiliary equipment including the body of transformer,switchgear, fuse, disassembling switches, low-voltage

power distribution unit, which can meetthe requirement of configurations such as electric power measurement,

reactive compensation and low-voltage shunt. The ZGS combined transformer, in AC 50HZ, 6-10KV network,

whose nominal capacity is 63-1600KVA, is an independent set of transformation and distribution device, which

can be both applied to outdoor and indoor, generally used in industrial zone,urban residential district, commercial

center, high-rise buildings and temporary construction

Technical parameters
Rated voltage	10/0.4kv(HV/LV)
Maximum working voltage	12(HV)
Rated frequency	50Hz
Rated capacity	50-1600kVA
Withstand voltage(1 min working)	35kV
Lightning impulse voltage	75kV
Cooling method	oil immersion self-cooling
High voltage	50kA
backup fuse switching on current	50kA
on-off current of the plug fuse	2.5
environment temperature	-35℃ to 40℃
Coil temperature	62 ℃
No load voltage	±5% ±2x2.5%
Noise level	50db
Protection level	IP43

Stainless Steel Prefabricated Substation , Box Type Power Distribution Substation

Manager Jack Whatsapp :+8618563957953

Manager Datang Whatsapp: +8613589262999
