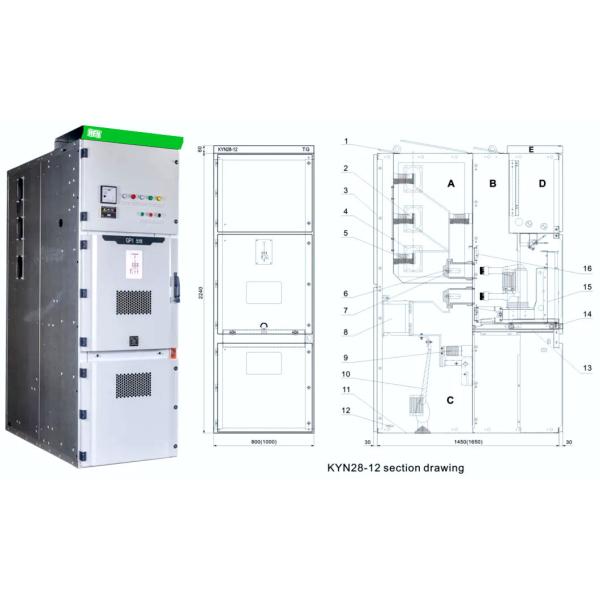

KYN28-12 middle cabinet high voltage power distribution cabinet 10KV complete set of electrical equipment
Switchgear Structure
1. The cabinet structure adopts assembled structure, and the circuit breaker adopts handcart floor structure;
2. Equipped with a new type of composite insulated vacuum circuit breaker with good interchangeability and simple replacement;
3. Screw nut propulsion mechanism is installed in the vehicle frame, which can easily move the handcart and prevent damage to the propulsion structure due to improper operation;
4. All operations can be carried out in the closed state of the cabinet door;
5. The interlock between the main switch, handcart and switch cabinet door adopts the mandatory mechanical lock to meet the "five defense" function;
6. The cable room is full of space to connect multiple cables
7. Quick grounding switch is used for grounding and circuit short-circuit;
8. Enclosure protection class IP3X, handcart compartment door open, protection class IP2X;
9. The product conforms to gb3906-1991.dl 404-1997 and adopts the international iec-298 standard with reference.
The Specification
| Item | Unit | Data |
| Rated Voltage | kV | 3.6,7.2,12 |
| Rated Frequency | Hz | 50 |
| Rated Current of Circuit Breaker | A | 630,1250,1600,2000,2500,3150 |
| Rated Voltage of Switchgear | A | 630,1250,1600,2000,2500,3150 |
| Rated short-time withstand current (4s) | kA | 16,20,25,31.5,40,50 |
| Rated Peak Withstand Current (Peak Value) | kA | 40,50,63,80,100,125 |
| Rated Short-circuit Breaking Current | kA | 16,20,25,31.5,40,50 |
| Rated Short- circuit Closing Current | kA | 40,50,63,80,100,125 |
| 1min Power Frequency Withstands Voltage | kV | 24, 32, 42 |
| Lightning Withstands Voltage , Rated Insulation Leve | kV | 40, 60, 75 |
| Protection Grade | Shell is IP4X, Shell is IP2X when compartment and circuit breaker doors are open |
